ECG Holter

CE

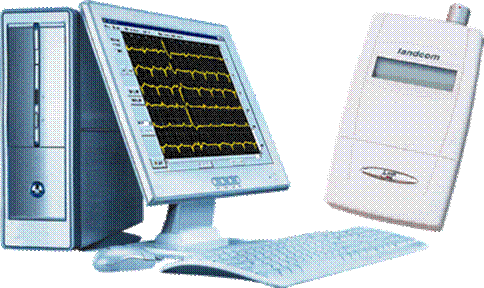

3 channel Holter system

Characteristics
. LCD real-time display of ECG
. Having analysis ability of arrhythmia, ST segment deviation and HRV
. Optional manual and automatic operating mode
. Ability of pre-scan ECG
. Review function of 24 hours ECG analysis result
. 3 channel 24 hours ST segment deviation analysis and display
. Display 3 channel 24 hours ST segment deviation per minute and blood scarcity index of myocardia

Technical Specification
. Recorder channel: 3 channels
. Recorder time: 24 hours
. Flash memory capacity: 128MB
. Sampling Frequency: 250Hz
. Response Frequency: 0.05-60Hz
. Common-mode Ratio: >60dB
. Size: 105mm*60mm*20mm
. Weight: 100g (without battery)
. Power: 1AALR6 battery

Standard Configuration
. 1 set of Commercial PC
. 1 set of Laser jet printer
. 2 sets of 3 channels ECG recorders
. 2 sets of 3 channels Holter cables
. 1 set of software security key
. 1set of analysis software package
. 1set of data transmission system
. 1set of system operation manual

12 lead Holter system

Characteristics
. LCD real-time display of 12-lead ECG
. Record Channel: 12-lead ECG
. Pre-scanning function of ECG waves process ahead of analysis
. Optional manual and automatic operating mode
. Display the instant heart rate
. Review function of 24hours ECG analysis results
. 12-lead 24hours ST segment deviation analysis and display
. Display 12-lead 24hours ST segment deviation per minute
. Supply blood scarcity of myocardio
. Measurement function of QT & QTD
. Comply with the international standard HRV analysis including time domain, frequency domain and non-line analysis

Technical Specification
. Recorder channel: 12-lead
. Recorder time: 24 hours
. Flash memory capacity: 256MB
. Sampling Frequency: 125Hz
. Response Frequency: 0.05-60Hz
. Common-mode Ratio: >90dB
. Size: 105mm*60mm*20mm
. Weight: 100g (without battery)
. Power: 1AALR6 battery

Standard Configuration
. 1 set of Commercial PC
. 1 set of Laser jet printer
. 2 sets of 12-lead ECG recorders
. 2 sets of 12-lead Holter cables
. 1 set of software security key
. 1set of analysis software package
. 1set of data transmission system
. 1set of system operation manual
