Electrosurgical Generator
ISO CE
 |

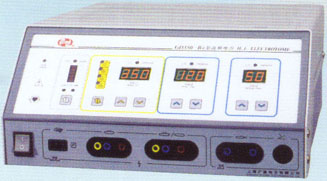

GD350-B4
Feature: feature multi-functional. PC double closed-loop
controlled, enlarged constant power scope (nearly 200W at
100-200次). Have both monopolar and bipolar, hand or foot
controlled, simultaneously or independently hand and foot
controlled. Equipped with single or dual foil patient plate.
Suitable for large, medium and small surgical operations
including general, cardiac, urinary, gynecologic, anus,
orthopedic, thoracic and tumourous surgery, etc. When equipped
with endoscope, peritoneoscope or cystoscope, it can also
perform electric operations in the abdominal cavity.
Accessories:
Hand-switch pencil (up to 134⊥
sterilizable) 1PC
Foot-switch pencil (up to 134⊥ sterilizable) 1PC
Bipolar forceps (up to 134⊥ sterilizable) 1PC
Neutral electrode 1PC
Foot switch 2PCS
Insulation container (up to 134⊥ sterilizable) 1PC
Power cable 1PC
Instruction book 2PCS
| Function: |
Pure cut |
Blend 1 |
Blend 2 |
Blend 3 |
Coag |
Bipolar coag |
| Rated
frequency (MHz) |
0.512 |
0.512 |
0.512 |
0.512 |
0.512 |
0.512 |
| Rated power
(W) |
350 |
250 |
200 |
120 |
120 |
50 |
| Rated load
(次) |
500 |
500 |
500 |
500 |
500 |
100 |
|
 |

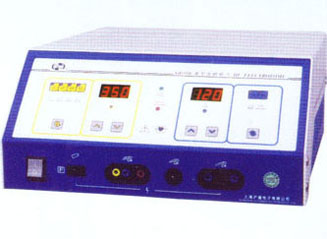

GD350-B
Features: This is a kind of
multifunction and high power electrotome. Have both monopolar
and bipolar, hand or foot controlled, it can be used in various
surgical operations including general, orthopedic, thoracic,
cardiac, gynecology, urinary, neurosurgery, otolaryngological,
cineplastic and cosmetic surgery, etc. When equipped with
endoscope, peritoneoscope or cystoscope, it can also perform
electric operations in the abdominal cavity.
Accessories:
Hand-switch pencil
1PC
Foot-switch pencil 1PC
Bipolar forceps 1PC
Neutral electrode 1PC
Foot switch 1PCS
Insulation container 1PC
Power cable 1PC
Instruction book 2PCS
| Function: |
Pure cut |
Blend 1 |
Blend 2 |
Blend 3 |
Coag |
Bipolar coag |
| Rated
frequency (MHz) |
0.512 |
0.512 |
0.512 |
0.512 |
0.512 |
0.512 |
| Rated power
(W) |
350 |
250 |
200 |
120 |
120 |
50 |
| Rated load
(次) |
500 |
500 |
500 |
500 |
500 |
100 |
|
 |

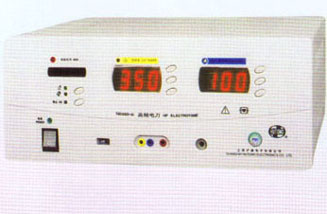

GD350-D
Feature: Monopol power output, hand
or foot controlled, equipped with argon gas monitoring
instrument (GD350-Ar) to form advanced argon gas electrotome
system. Equipped with single or dual foil patient plate. Blend
model do well in cut and hemostasis, in place or pinpoint coag,
and andspray coagulation is applicable to large area fast
hemostasis. Suitable for large and medium surgical operations
including general, thoracic, abdominal, cardiac, orthopedic,
urinary, gynecologic, cineplastic, cineplastic surgery, etc.
When equipped with peritoneoscope, it can also perform electric
operations in the abdominal cavity.
Accessories:
Hand-switch pencil
1PC
Foot-switch pencil 1PC
Neutral electrode 1PC
Bipolar forceps 1PC
Foot switch 1PCS
Insulation container 1PC
Power cable 1PC
Instruction book 2PCS
| Function: |
Monopolar blend |
Monopolar spray coag |
| Rated
frequency (MHz) |
0.512 |
0.512 |
| Rated power
(W) |
350 |
100 |
| Rated load
(次) |
500 |
1000 |
|
 |

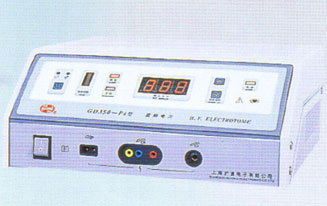

GD350-P4
Feature: Monopolar, PC double
closed-loop controlled, automatically adjusts cutting and
coagulation in the light of actual tissue conditions.
Independently hand or foot controlled. Equipped with single or
dual foil patient plate. Suitable for various monopolar surgical
operations including general, thoracic, abdominal, cardiac,
urinary, gynecologic and cineplastic sugery, etc. Also suitable
for otolaryngological and cosmetic surgery with a lower power.
Accessories:
Hand-switch pencil (up to 134⊥
sterilizable) 1PC
Foot-switch pencil (up to 134⊥ sterilizable) 1PC
Neutral electrode 1PC
Foot switch 1PC
Insulation container (up to 134⊥ sterilizable) 1PC
Power cable 1PC
Instruction book 2PCS
| Function: |
Monopolar blend |
| Rated
frequency (MHz) |
0.512 |
| Rated power
(W) |
300 |
| Rated load
(次) |
500 |
|
 |

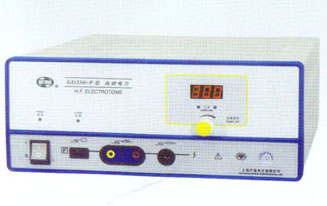

GD350-P
Feature: Monopolar, combining cut
and coagulation, hand or foot controlled, applicable to various
monopolar surgical operations including general, thoracic,
abdominal, cardiac, urinary, gynecologic and cineplastic sugery,
etc. Also suitable for otolaryngological and cosmetic surgery
with a lower power.
Accessories:
Hand-switch pencil
1PC
Foot-switch pencil 1PC
Neutral electrode 1PC
Foot switch 1PCS
Bipolar forceps 1PC
Insulation container 1PC
Power cable 1PC
Instruction book 2PCS
| Function: |
Monopolar blend |
| Rated
frequency (MHz) |
0.512 |
| Rated power
(W) |
300 |
| Rated load
(次) |
500 |
|
 |

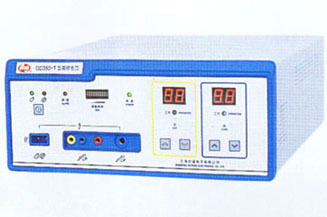

GD350-T
Feature: Monopolar, constant power,
highly effective, hand or foot controlled. Coagulation results
are automatically adjustable. equipped with single or dual foil
patient plate. To applicate the tumors surgery including
general, cardiac, gynaecologic, anus, orthopaedic, thoracic, and
tumors surgery, etc.
Accessories:
Hand-switch pencil
1PC
Foot-switch pencil 1PC
Neutral electrode 1PC
Bipolar forceps 1PC
Foot switch 1PCS
Insulation container 1PC
Power cable 1PC
Instruction book 2PCS
| Function: |
Monopolar blend |
Monopolar spray coag |
| Rated
frequency (MHz) |
0.512 |
0.512 |
| Rated power
(W) |
90 |
90 |
| Rated load
(次) |
500 |
500 |
|
 |

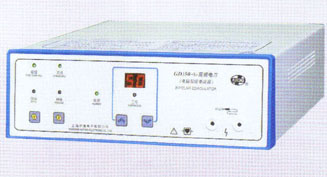

GD350-S1
Features: Applicable to hemostasis
in subtle operation. Especially in subtle coag and automatic
subtle coag models output is automatically adjusted in line with
tissue state to reduce carbonization aand adhesion. Suitabloe
for medium and small surgical operations including neurosurgery,
microsurgery, otolaryngological and cosmetic surgery, etc.
Accessories:
Bipolar forceps 2PCS
Foot switch 1PC
Power cable 1PC
Instruction book 2PCS
| Function: |
Bipolar standard coag |
Bipolar precise coag |
Bipolar automatically coag |
| Rated
frequency (MHz) |
1.024 |
1.024 |
1.024 |
| Rated power
(W) |
50 |
50 |
50 |
| Rated load
(次) |
100 |
100 |
100 |
|
 |

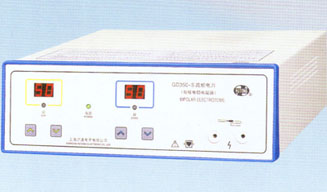

CD350-S
Feature: Bipolar, with functions of
cut and coagulation, applicable to both coagulation is subtle
operation and subtle cut. Suitable for medium and small surgical
operations including neurosurgery, microsurgery,
otolaryngological and cosmetic surgery, etc.
Accessories:
Bipolar forceps 2PCS
Foot switch 1PC
Power cable 1PC
Instruction book 2PCS
| Function: |
Bipolar cut |
Bipolar coag |
| Rated
frequency (MHz) |
1.024 |
1.024 |
| Rated power
(W) |
50 |
50 |
| Rated load
(次) |
200 |
100 |
|
 |

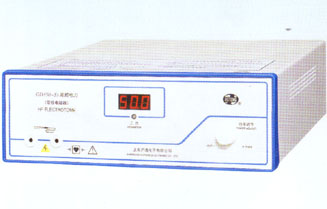

GD350-S3
Feature: Applicable to coagulation
in subtle operation. Widely used in medium and small surgical
operations including neurosurgery, microsurgery,
otolaryngological and cosmetic surgery, etc.
Accessories:
Bipolar forceps 2PCS
Foot switch
1PC
Power cable 1PC
Instruction book 2PCS
| Function: |
Bipolar coag |
| Rated
frequency (MHz) |
1.024 |
| Rated power
(W) |
50 |
| Rated load
(次) |
100 |
|
 |

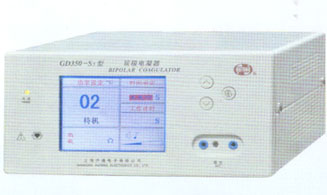

GD350-S5
Feature: The function is low
temperature bipolar coagulation, to apply to the biological
tissue in medical surgical operations of small/minute trauma.
Accessories:
Bipolar forceps 1PCS
Bipolar RF needle 1PCS
Foot switch
1PCS
Power cable 1PCS
Instruction book 2pcs
| Function: |
Bipolar coag |
| Rated
frequency (MHz) |
0.512 |
| Rated power
(W) |
0-50 |
| Rated load
(次) |
25-450 |
|
 |

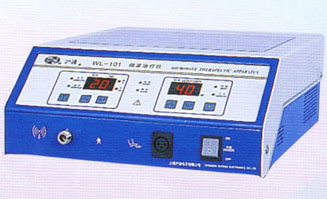

WL-101
Features: Miniature microwave
therapy instrument. Applicable to chronic inflammation as
gynecology, dermatology and physical therapy,etc.
Accessories:
Radiator (different size available) 1SET
Foot switch 1PC
Power cable 1PC
Instruction book 2PCS
﹛
| Function: |
Physical therapy |
Therapy |
| Rated
frequency (MHz) |
2450 |
2450 |
| Rated power
(W) |
40 |
40 |
| Rated load
(次) |
50 |
50 |
|
|
