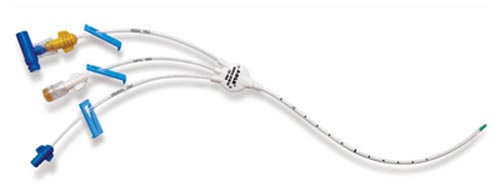

Central Venous Catheter
CE

Specification Specification
Single lumen 16Ga 20cm Double lumen 7F 20cm
Single lumen 16G 30cm Double lumen 7F 30cm
Single lumen 16Ga 16cm Double lumen 7F 16cm
Single lumen 14Ga 20cm Triple lumen 7F 20cm
Single lumen 14Ga 30cm Triple lumen 7F 30cm
Single lumen 14Ga 16cm Triple lumen 7F 16cm
Double lumen 7F 20cm Single lumen 20Ga 8cm
Double lumen 7F 30cm Single lumen 20Ga 13cm
Triple lumen 7F 20cm Single lumen 20Ga 16cm
Triple lumen 7F 30cm Double lumen4F 13cm
Single lumen 16Ga 20cm Double lumen4F 16cm
Single lumen 16G 30cm Double lumen 5F 13cm
Single lumen 16Ga 16cm Double lumen 5F 16cm
Single lumen 14Ga 20cm Triple lumen 5.5F 13cm
Single lumen 14Ga 30cm Single lumen 18Ga 13cm
Single lumen 14Ga 16cm Single lumen 18Ga 8cm

Length:5£¬8£¬13£¬20£¬30mm


Single-lumen
14G/16G/18G/20G


Double-lumen
14G/18G


Triple-lumen
14G/18G/18G


Four lumen
14G/16G/16G/18G

Components:

catheter with clamp; 5ml syringe; Introducer needle: Guidewire with helper; Dilator; Catheter clamp; 7# needle; Injection site adaptor

Product characteristic:

1.Movable clamp ensures punturang much more safer.
2.The soft hub allows for added patient comfort.
3.Soft polyurethane and soft tip ensure to reduce trauma to vessel wall.
4.The radiopaque catheter and tip facilitale vessel location when visualized by X-Ray.
5.Multiple introducing needles available in syringe type or Y-shaped introducing needles.

6.Complete Insertion Set,Supplied with the economical basics for Seldinger Technique nsertion.
Catheter,vessel dilator,guidewire,introducer needle,and injection caps.
