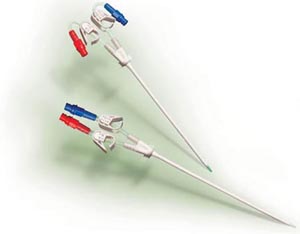

Hemodialysis Access
Catheter
|
|
Structure
|
Type of
catheter
|
Oute
diameter
|
Gauge
|
Length
of catheter
|
Type of
Guide-wire
|
|
Single-lumen
|
8Fr
|
2.7
|
12Ga
|
13,16,20
|
3JFM-035-60
|
|
Double-lumen
|
6.5F
|
2.2
|
18Ga,18Ga
|
13,16
|
3JFM-038-60
|
|
8F
|
2.7
|
14 Ga,14
Ga
|
13,16,20
|
3JFM-038-60
|
|
11.5F
|
3.6
|
12 Ga,12
Ga
|
13,16,20
|
3JFM-038-60
|
|
Triple-lumen
|
12Fr
|
4.0
|
16 Ga,12
Ga,12 Ga
|
13,16,20
|
3JFM-038-60
|
|
| Product
characteristic: |
 |
1.Soft
Tip
Reduces trauma to vessel wall upon introduction and in-situ.
The radiopaque catheter and tip facilitates vessel location
when visualized by X-Ray. |
 |
2.Biocompatible
Polyurethane
Tested for toxicity and
hemocompatability,and become softer in body temporature. |
 |
3.Easilly-find
under X-Ray
Sufficificently radiopaque materials
ensures the correct placement of cathetor. |
 |
4.Curved
Extensions
The extensions are curved for jugular
vein approaches to make the catheter more comfortable for the
patient. |
 |
5.Rotating
Suture Wing
Rotating suture wing provides secure
external anchoring. |
 |
6.Antimicrobial
heperine cap
Specially-made adaptor helps to avoid
infection. |
 |
7.Multi-lumen
available
Available single,double,triple lumen for
infant and adudt. |
 |
8.Compund-packaging
tray
Available lots components.
Complete Insetrion Set.Supplied with the economical basics for
Seldinger Technique Insertion.Catheter,vessel
dilator,guidwire,introducer needle,and injection caps. |
|
