 Non Woven Swab Slitting Machine

This machine is mainly used to cut the wide non woven roll into small rolls with different width for the production of different non woven products.
The machine adopts the installments of direct current velocity modulation, permanent tensity control, air knife cutting ,adding pressure in rolling.
กก

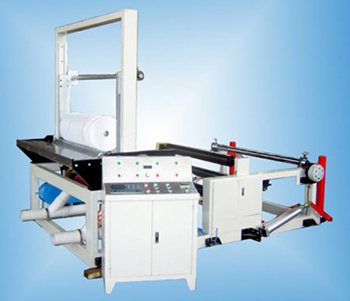

type 1200
item technical data
width 1200mm
max. unwinding diameter 1000mm
max. winding diameter 650mm
max. slitting speed 100m/min
min. slitting width 20mm
power needed 2.6kw
machine size 3000*1800*2200

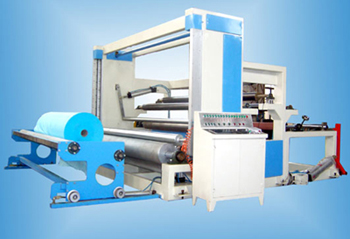

type 2500
item technical data
width 2500mm
max. unwinding diameter 1200mm
max. winding diameter 1000mm
max. slitting speed 100m/min
min. slitting width 20mm
power needed 3.3kw
machine size 4500*3700*2170

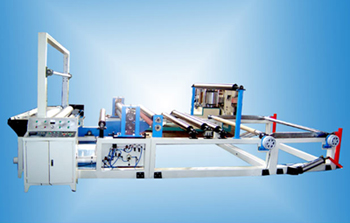

type 2000
item technical data
width 2000mm
max. unwinding diameter 1000mm
max. winding diameter 650mm
max. slitting speed 100m/min
min. slitting width 20mm
power needed 3.3kw
machine size 3500*2700*2200
