Stretcher For Ambulance Car
CE
|
|

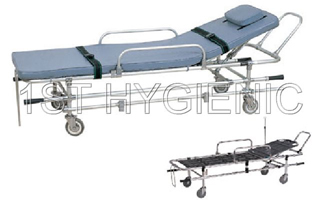

| YDC-2A
Model
Stretcher For Ambulance Car
Character
of Function:
We adopt high quality aluminum alloy material to
manufacture the products. It is convenient for operating
and it has flexible and light structure.
The bed surface of stretcher is made of foamed cushion
which makes the wounded feel comfortable.
The both ends of strectcher have flexible handle which
is convenient for lifting the strectcher (when pull
it.).
The machine employs low fram structure, so it can move
on the ground and also can be lifted as stretcher.
Technical Parameters:
Size (Length¡ÁWidth¡ÁHeight): 190¡Á53¡Á55cm
Maximum Angle of the Back: 60¡ã
Distance between Front and rear wheel: 132cm
Weight Bearing: 159kg
Total Weight: 27kg
Packing(1pc)
Size£º192¡Á60¡Á34cm
G.W£º30kg
|
|
|

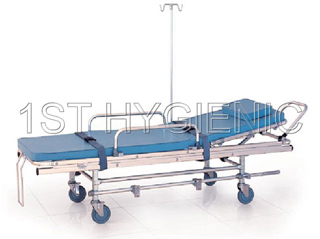

YDC-2B
Model
Stretcher For Ambulance Car
Character of Function:
We adopt high quality aluminum alloy material to
manufacture the products. It is convenient for operating
and it has flexible and light structure.
The bed surface of stretcher is made of foamed cushion
which makes the wounded feel comfortable.
The both ends of strectcher have flexible handle which
is convenient for lifting the strectcher (when pull
it.).
The machine employs low fram structure, so it can move
on the ground and also can be lifted as stretcher.
Technical
Parameters:
Size (Length¡ÁWidth¡ÁHeight): 190¡Á53¡Á55cm
Maximum Angle of the Back: 60¡ã
Distance between Front and rear wheel: 108cm
Weight Bearing: 159kg
Total Weight: 30kg
Packing(1pc)
Size£º196¡Á62¡Á39cm
G.W£º34kg
|
|
|
|

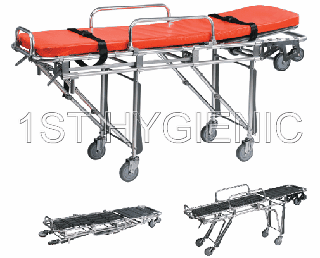

YDC-3A
Stretcher For Ambulance Car
|
Technical
features:
Mode of high-quality alloyed aluminum.
Bed-surface is made of foamed cushion, which
makes the wounded feel comfortable.
The mechanical folding legs are controlled by
the handles on both sides.
Only one person can send the patient (with this
trolley) to the ambulance.
The stretcher can be locked up after being
aboard through the chute. |
|
Technical
parameters:
Size (L¡ÁW¡ÁH ):
high position:190¡Á55¡Á88cm
low position:190¡Á60¡Á26cm
Maximum Angle of the Back: 60¡ã
Weight Bearing :159 kg
Weight: 39kg
Packing(1pc)
Size£º196¡Á61¡Á28cm
G.W£º42kg |
|
|
|
|

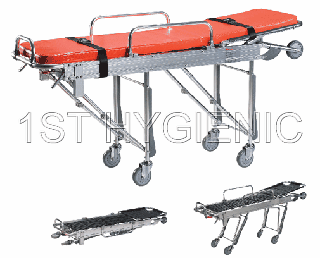

YDC-3B
Stretcher For Ambulance Car
|
Technical
features:
Mode of high-quality alloyed aluminum.
Bed-surface is made of foamed cushion,
which makes the wounded feel comfortable.
The mechanical folding legs are controlled by
the handles on both sidcs.
Only one person can send the patient (with this
trolley) to the ambulance.
The stretcher can be locked up after be aboard
through the chute. |
|
Technical
parameters:
Size (L¡ÁW¡ÁH ):
high position:190¡Á55¡Á88cm
low position:190¡Á60¡Á24cm
Maximum Angle of the Back: 60¡ã
Weight Bearing: 159kg
Weight: 40kg
Packing(1pc)
Size£º196¡Á61¡Á26cm
G.W£º43kg |
|
|
|
|

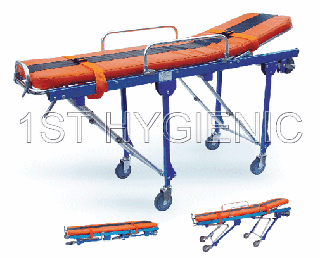

YDC-3C
Stretcher For Ambulance Car
|
Technical
features:
Mode of high-quality alloyed aluminum.
Bed-surface is made of foamed cushion,
which makes the wounded feel comfortable.
The mechanical folding legs are controlled by
the handles on both sidcs.
Only one person can send the patient (with this
trolley) to the ambulance.
The stretcher can be locked up after be aboard
through the chute. |
|
Technical
parameters:
Size (L¡ÁW¡ÁH):
high position: 190¡Á55¡Á90cm
low position: 190¡Á60¡Á24cm
Max angle of the backrest: 60¡ã
Bearing weight: 159kg
Weight: 45kg
Packing(1pc)
Size£º194¡Á61¡Á26cm
G.W£º49kg |
|
|
|
|

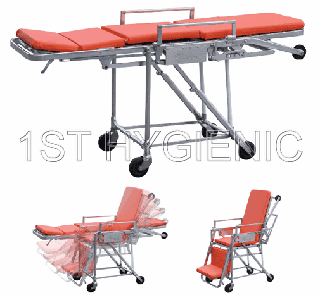

YDC-3D
Stretcher For Ambulance Car
|
|
Technical
features:
The stretcher trolly can be converted into a
chair,the angle of the stretcher can be adjusted
according to your demand.It¡¯s quite suitable
to transfer the patients in the limited
place,esp.in the lift.
|
|
Technical
parameters:
Size (L¡ÁW¡ÁH):
high position 190¡Á56¡Á90cm
low position 190¡Á56¡Á22cm
Bearing weight: 159kg
Weight: 30kg
Packing(1pc)
Size£º194¡Á59¡Á25cm
G.W£º33kg |
|
|
|
