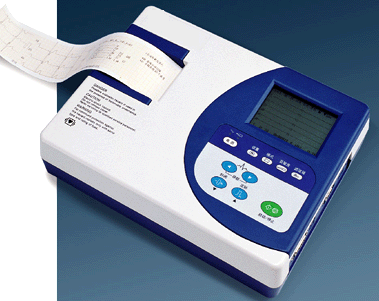

 3 Channel ECG
CE

FEATURES:

Synchronously acquisition of 12-lead ECG waveforms and auto
measureement printer  report ;
LCD modual  display  menu /status
AC and DC power supply ,built -in rechargeable battery;
Strily follpw IEC60601-1  class I, type CF safety standard

SPECIFICATIONS:

Lead:  standard  12 leads; european  leads
Input  Circuit: floating, protection  against  defibillator effect
Calibrating:1mV 2%
Sensitivity:auto,5 10  20mm/mV
Recording System:  thermal-array
Speed:25, 50mm/s
Safety: standard IEC class I ,type  CF
Power  Supply AC :220V (110V),50Hz/60Hz,30VA
                             DC :12V-1500mAh  rechargeable battery
Dimensions:  290 mm x 205mm x 65mm
Net  weight:  2.1kg
