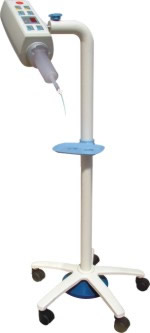

Peripheral Blood-vessel Injector is designed specially to delivery contrast agent for peripheral blood-vessel imaging with digital gastrointestinal diagnostic equipment ,electric C-Arm X-ray imaging system and more.

Characteristic:
●Peripheral Blood-vessel Injector is specially designed to meet the demands of peripheral blood-vessel imaging. Its application is pertinence and its structure is logical.
●By virtue of nimble and driving injector arm, centralized operations of absorbing medicine, draining the air and trying injection are in high efficiency.
●The remote operation controller offers users intuitionistic operation interface. With the clear and comprehensive indication of data and state, you will easily master the whole system state. You need doing nothing but pressing a few buttons on the panel to control the whole system.

Specification:
Syringe capacity:100ml
Flow Rate (programmable)：0.1 to 20ml/ sec
Pressure Limits (programmable) ：300 to 600psi(in 100psi increments)
Injection Capability ：1 to 4 phases
Interval:0-255seconds
Delay:0-255seconds
Storage program:100 injection protocols (including 80 injection protocols with 4 phases)
