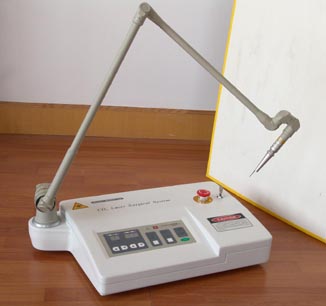

 15W Desk Type Surgical C02 Laser
CE & FDA

Characteristics:

1.
System modes: continuous, single pulse, repeat pulse, super pulse. Output power is adjustable from 0.5W~15W continuously. The treatment is used to cure surface disease of face while causing less damage. It holds good for beauty culture.

2. Aiming beam: Red pilot beam of 2mW diode laser. The unit can clear up the focus of a disease exactly while causing less damage to tissue around.

3. The unit is a new type of intelligent laser medical devices which is controlled by microprocessor program, applying light-touching thin-film switch and the function of power alternation. The unit is especially added power feedback system which makes power output of laser beam accurate.

4. Laser beam delivery system is composed of light 7-joint spring-balanced articulated arm, which can be operated conveniently.

5. Output power and irradiating time can be read directly from digital faceplate which provides correct data for doctor's clinical material.

6. The handpiece has many types which can be used in different clinical treatment such as cutting, burning, vaporizing, solidifying. Among these handpieces, there is a lank one applied in otolaryngology. It can reach deep into nasal cavity and guttural inner to resect or vaporize the focus of a disease.

It can be used in patient room, beauty house and private clinic for its dexterous volume, light weight, convenience carry.

Features:

Sealed-off laser technology 7-joint spring-balanced
CW. pulse & super pulse   articulated arm
  operation modes Pilot beam of 2mW
Touching switch, micro-processor   diode laser

controlled, alpahnumeric message
Safety protecting with
  display   alarming automatically

Technical Specifications

Laser type

Sealed off, DC-excited C02 laser

Wavelength

10.6¦Ìm

Mode

TEM00

Power to tissue

15W

Laser operation modes

CW, Pulse, Super pulse

Tissue exposure modes

Continuous, Single pulse, Repeat pulse

Super pulse peak power

100W

Aiming beam

2mW pilot beam (650nm)

Delivery system

7-joint spring-balanced articulated arm

Working radius

110cm

Cooling system

Closed loop liquid

Control

Microprocessor controlled

Warranty

2 years

Electrical input

AC 220V/50Hz or AC110V/60Hz

Dimension (mm)

360*610*120

Weight (kg)

18

Applications:

General Surgery:

haemangioma, adipoma, steatoma, rectal cancer

Oral Surgery:

epulis, buccal haemangioma, mucous cyst, lichen planus

Otolaryngology:

aurical vegetation, nosal tumour and tumour of paranasal simus, benign tumour of oropharynx, gular haemangioma, vocal polyp, laryngocarcinoma, chronic pharyagitis, chronic rhinitis, chronic laryngitis

Urology:

meatus urinarious condyloma, redundant prepuce, caruncle of urethra, polyp of penis

Gynecology:

myoma of uterus, cervical erosion, cervical polyp, vagina condyloma

Dermatology:

wart, common wart, venereal wart, herpes labialis, herpes zoster, nevus pigmentosa, cutaneous malignant tumour

Cosmetology:

dispel wrinkle tache, stains of face, nevus, vegetation and underarm oduour

¡¡
