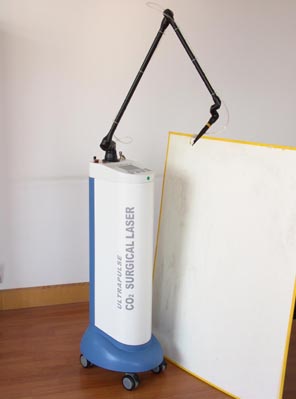

Erect Type Surgical C02 Laser
CE & FDA

Technical Specification:
Laser type: sealed-off CO2 laser tube
Wavelength: 10.6 micron
Mode structure: TEMOO
Power to tissue:0.5-25w
Superpulse peak power:500W
Superpulse frequency: 1-500Hz
Superpulse duration(on-time):10-1000ms
Laser operation modes: CW, pulse, superpulse
Tissue exposure modes: Continuous, single pulse, repeat pulse
Aiming beam: 3mW(650nm diode) adjustable
Articulated arm: 7-joint spring-balanced articulated arm
Working radius: 130cm
Cooling type: Closed loop liquid
Power input requirements:110VAC/60Hz or 220VAC/50Hz+-10%
Dimension: 34x46x96cm
Weight:30Kg

Accessories:
1. Laser unit
2. Articulated arm
3. Footswitch
4. Power cable
5. Master keys
6. Sare fuses
7. Remote control interlock connector
