2¡¢Configuration

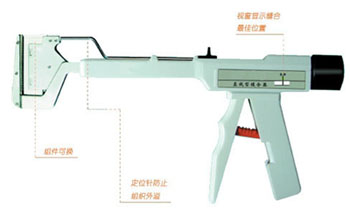

Linear Stapler HS mainly consists of anvil closure
assembly and staples firing assembly. Turn the
adjusting knob clockwise, drive the movable module
to slide in the two cradles by lead screw, freely
adjust the height of staple formation and the gap
between the anvil and the end of movable module.
The adjusting results can be seen from the firing
indicator window.
In
order not to influence proper formation because of
the movement of the movable module, there is a
position setting pin which can ensure movable
module to move properly. Furthermore, it allows
repositioning of tissue within instrument. A very
large gap between the anvil and the end of movable
module is available. The anvil and the end of
movable module can press to each other tightly and
parallelly so that the pressed tissues distribute
very uniformly. This stapler also has a safety to
avoid firing mistakenly.
3¡¢Technical
parameters and Dimensions
¡¡
|
Product Code
|
No. of Staples
|
Knife Extent
|
|
HS-30
|
11
|
31.5
|
|
HS-45
|
15
|
47
|
|
HS-60
|
21
|
59
|
|
HS-75
|
25
|
74
|
|
HS-90
|
33
|
92
|
4¡¢Precautions
This stapler is sterilized by ¦Ã-ray and is
supplied for clinical use in a sterilized
packing.
¢Å
Be sure to check the packing of this product
carefully before use. Stop using it if the
packing
bursts.
¢Æ
This product is for One patient only, so it
mustn¡¯t be used again though sterilized.
¢Ç
Make sure the product is within the period of
validity (three years after sterilized).It is
strictly
prohibited to use the product beyond the
expiration date.
¢È
The sterilized products must be stored in a dry
room with excellent ventilation and without
caustic gases.
|
