 Memory Ni-Ti Alloy Esophagus Stent
(mesh type)
CE

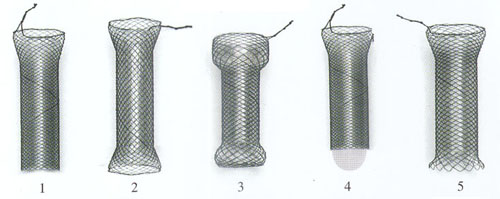

1.single-cup type stent
2.double-cup type stent
3.ball type stent
4.anti-reflux stent
5.double-cup type & anti-reflux stent

Specification

product code covering stent diameter(mm) stent length(mm) stent shape Y catheter diameter(Fr) catheter length(mm) guiding wire diameter(in)
NTJB-dxy PU 16
18
20		 40 50 60 70 80 90 100 110 120 130 1
2
3
4
5		 24 600 0.038

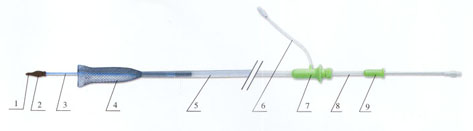

1.guiding hole
3.inner catheter
5.outer catheter
7.handle 1
9.handle 2		 2.guiding head
4.stent
6.infusion catheter
8.releasing catheter

Contraindication:
1.Focal area is above the first thoracic vertebrae plane;
2.Serious cardiopulmonary malfunction;
3.Being prone to induce apnea caused by food, inhalation through respiratory tract;
4.Patient that have serious esophagus varices, and is prone to cause hemorrhage while dilate esophagus.

Application:
1.Terminal inoperable esophagus cancer;
2.The stricture of anastomosis part;
3.The esophagus stricture caused by chemical burn;
4.The stricture caused by esophagus cancer radiotherapy.
